Product Features
Replaceable Hepa Filter with high efficiency.
Light weight, convenient installation and replacement.
Low resistance.
Low operation cost.
Long life-span.
Large dust capacity.
100% factory inspection.
Product Features

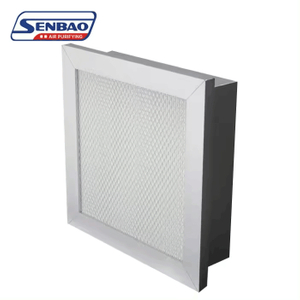

Replaceable Hepa Filter with high efficiency.
Light weight, convenient installation and replacement.
Low resistance.
Low operation cost.
Long life-span.
Large dust capacity.
100% factory inspection.
Application
HEPA filter: It widely used to the terminal filtration of the clean room., such as electronic, medicament, food and clean bench.
Material and Operation Conditions
Filter Media | Fiberglass |
External Frame | Aluminum |
Partition | Hot melt adhesive |
Sealant | Polyurethane adhesive |
Max. Temperature | 85℃ |
Max. Humidity | 80%RH |
Specification and technical parameters
ModelNo. | Size(mm) (L*W*H) | Rated Air flow (m³/h) | Surface wind speed | Initial resistance (pa) | Efficiency 0.3μm (flame method) |
GDW | 570*570*50 | 400 | 0.35 | ≤135 | H13 |
GDW | 610*610*50 | 450 | 0.35 | ||
GDW | 915*610*50 | 700 | 0.35 | ||
GDW | 610*610*69 | 600 | 0.45 | ||
GDW | 915*610*69 | 900 | 0.45 | ||
GDW | 1170*570*69 | 1080 | 0.45 | ||
GDW | 610*610*90 | 600 | 0.45 | ||
GDW | 915*610*90 | 900 | 0.45 | ||
GDW | 1170*570*90 | 1100 | 0.45 |
Special size can be according to customer special requirement.
